وصف المنتج

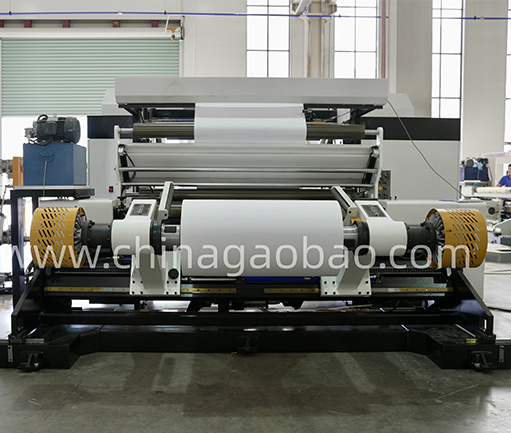

إسم المنتج: CM Full Automatic High-pecision Paper Slitting Machine
رقم المنتج: CM-1

CM slitting machine is a high speed paper slitting rewinding machine. This type slitter machine can slit and rewind minimum 30mm width paper rolls.

Usage:

CM slitting machine is a high speed paper slitting rewinding machine. This type slitter machine can slit and rewind minimum 30mm width paper rolls. It is widely using in the printing and packaging.The machine adjust speed frequency converter motor, it can keep stable operation when speed up.It adopts PLC autometer count, automatic alarm.

Feature:

1. The machine use PLC control,three pcs Servo Motors, tension automatic control, surface rewinding together way（The rewinding way make the narrow roll hard and slitting surface smooth.)

2. The machine use frequency converter to adjust and control speed,it can keep stability when the speed running up.

3.Automatic counter meter, auto alarm and auto stop when the machine had fault. Automatic stop when reach the rewinding roll size you are setting.

4.The rewinding use A、B double friction shafts structure which make the rewinding tension more better.

5.The unwinding Web Guide(EPC) use ultrasonic control way to keep and correct the web material position.

6.It use round blade slitting knife which located in the back side of machine.The design make the knife adjustment more easily. The waste material automatic take out by blower fan.

Specifications：

Model	CM-1300	CM-1700
Max.Width of unwinding roll	1300mm	1700mm
Max. Diameter of unwinding roll	1400mm	1400mm
Min width rewinding roll	30mm	30mm
Max diameter rewinding roll	800mm	800mm
speed	80-400m/min	80-400m/min
Precision	±0.2 mm	±0.2 mm

Applications:

CM slitting machine is suitable for many kinds of jumbo paper roll materials, such as kraft paper, office copy paper, coated paper.

Packaging

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.

Packaging

After-sales service

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
